Product Overview

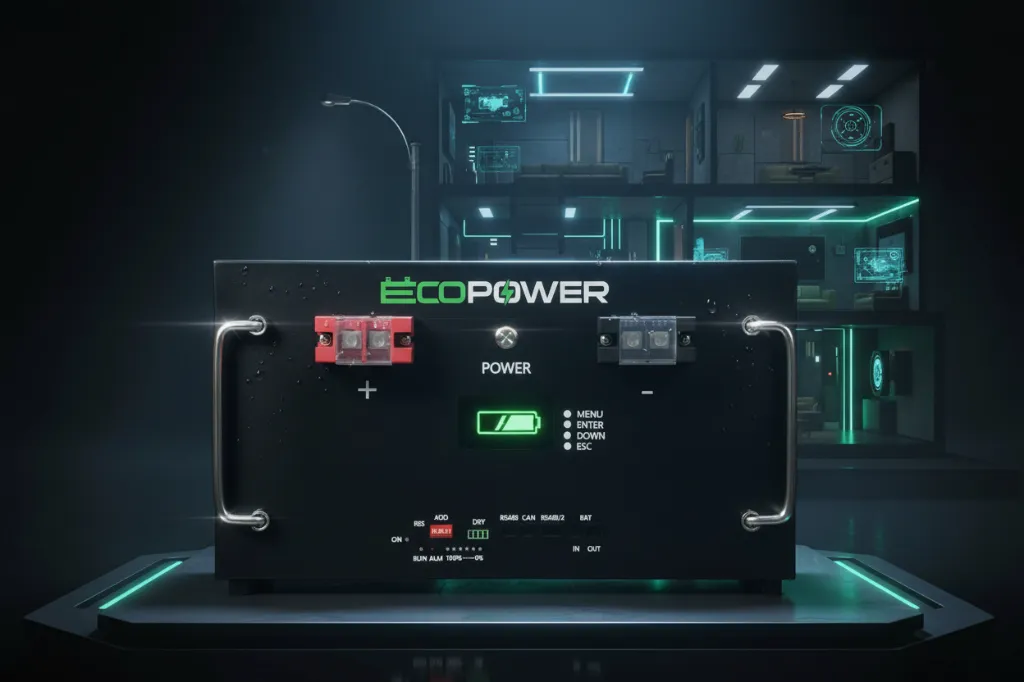

Take complete control of your power management with the high-performance E05C8 Smart Energy Storage Battery. Engineered with premium Grade A LiFePO4 (Lithium Iron Phosphate) cells, this efficient 25.6V system delivers a dependable 5.12 kWh of energy storage, ensuring ultimate safety and an exceptional operational lifespan for residential and commercial solar setups.
Featuring a versatile hybrid design, it can be easily wall-mounted or placed on a floor rack, seamlessly fitting into your space while providing a reliable backup during outages.
Ultra-Long Lifespan: Designed to last up to 16 years with over 6000 cycles of reliable performance.
Guaranteed Quality: Backed by a comprehensive 5-year quality guarantee.
Smart Monitoring: Equipped with integrated Bluetooth, CAN, and RS485 communication ports alongside an advanced BMS for real-time tracking.
📊 Basic & Physical Parameters
| Parameter | Specification |
| Model | E05C8 (200Ah 5.12kWh) |
| Cell Type | LiFePO4 - (A) Grade |
| Energy Storage | 5120 Wh |
| Nominal Capacity | 200 Ah |
| Nominal Voltage | 25.6 V |
| Shell Material / Case Design | Wall Mounted & Rack Floor |
| Dimensions (WDH) | 60 × 45 × 18 mm |
| Weight | 44 kg |
| Color Options | White & Black |
| Communication Ports | RS485, CAN, Bluetooth |
| BMS Protection | 24 V, 100 A |
| Class of Protection | IP20 |
⚙️ Operation & Performance Parameters
| Parameter | Specification |
| Maximum Charge Voltage | 28.5 V (Range: 23 ~ 28.5 V) |
| Discharge Cut-off Voltage | 23 V |
| Recommended Charge Current | 80 A |
| Max Continuous Charge & Discharge Current | 100 A |
| Round Trip Efficiency | 87% |
| Recommended Depth of Discharge (DoD) | < 80% |
| Maximum Depth of Discharge (DoD) | 87% |
| Charging Duration | 260 minutes |
| Cooling Method | Natural Cooling |
🔬 Discharge Test Parameters (@25°C)
Max Continuous Discharge Current Power: 4454 Wh
Discharge Capacity: 174 A
Discharge Percentage: 87%
🌡️ Temperature Limits
Recommended Operating Temperature: 25°C
Charge Temperature Range: 0°C ~ +55°C
Discharge Temperature Range: -20°C ~ +60°C
Storage Temperature Range: -20°C ~ +45°C
🖥️ Smart Monitoring Data
The built-in intelligent system tracks and reports real-time telemetry, including:
🏅 Quality & Certifications
Management Standards: ISO 9001, ISO 14001, ISO 45001 Certified
Safety & Compliance: CE Mark, ROHS, UN38.3 Certified
International Standards: IEC 62619, IEC 62620, IEC 62321
