💡 Product Overview
Take complete control of your power management with the E05C16+ Smart Energy Storage Battery. Engineered with premium Grade A LiFePO4 (Lithium Iron Phosphate) cells, this high-performance battery delivers ultimate safety, high efficiency, and an exceptional lifespan for residential and commercial solar setups.

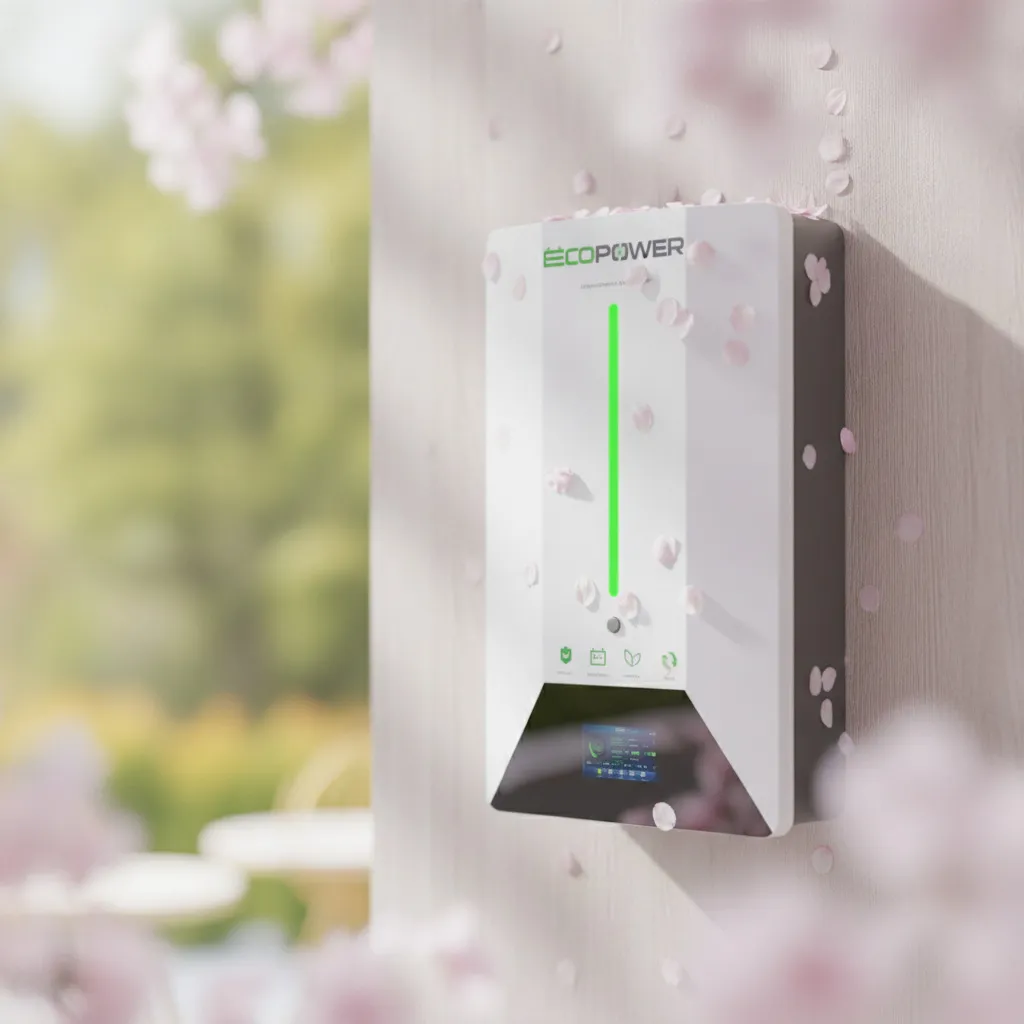

Featuring a versatile hybrid design, it can be easily wall-mounted or placed on a floor rack, seamlessly fitting into your space while providing a reliable backup during outages.
Ultra-Long Lifespan: Designed to last up to 16 years with over 6000 cycles of reliable performance.
Guaranteed Quality: Backed by a comprehensive 7-year quality guarantee.
Smart Monitoring: Equipped with integrated Bluetooth, CAN, and RS485 communication ports alongside an advanced BMS for real-time tracking.
📊 Basic & Physical Parameters
| Parameter | Specification |
|---|
| Model | E05C16+ (100Ah 5.12kWh) |
| Cell Type | LiFePO4 - (A) Grade |
| Energy Storage | 5120 Wh |
| Nominal Capacity | 100 Ah |
| Nominal Voltage | 51.2 V |
| Shell Material / Case Design | Wall Mounted & Rack Floor |
| Dimensions (WDH) | 60 × 45 × 18 mm |
| Weight | 44 kg |
| Color Options | White & Black |
| Communication Ports | RS485, CAN, Bluetooth |
| BMS Protection | 48 V, 100 A |
| Class of Protection | IP20 |
⚙️ Operation & Performance Parameters
| Parameter | Specification |
|---|
| Maximum Charge Voltage | 57 V |
| Discharge Cut-off Voltage | 46 V |
| Recommended Charge Current | 80 A |
| Max Continuous Charge & Discharge Current | 100 A |
| Round Trip Efficiency | 96% |
| Recommended Depth of Discharge (DoD) | < 90% |
| Maximum Depth of Discharge (DoD) | 96% |
| Charging Duration | Rapid charge in 53 minutes |
| Cooling Method | Natural Cooling |
🔬 Discharge Test Parameters (@25°C)
🌡️ Temperature Limits
Recommended Operating Temperature: 25°C
Charge Temperature Range: 0°C ~ +55°C
Discharge Temperature Range: -20°C ~ +60°C
Storage Temperature Range: -20°C ~ +45°C
🖥️ Smart Monitoring Data
The built-in intelligent system tracks and reports real-time telemetry, including:
🏅 Quality & Certifications
